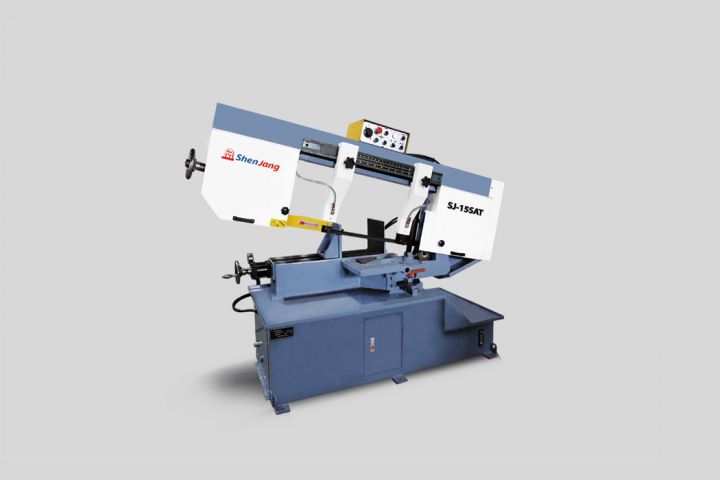

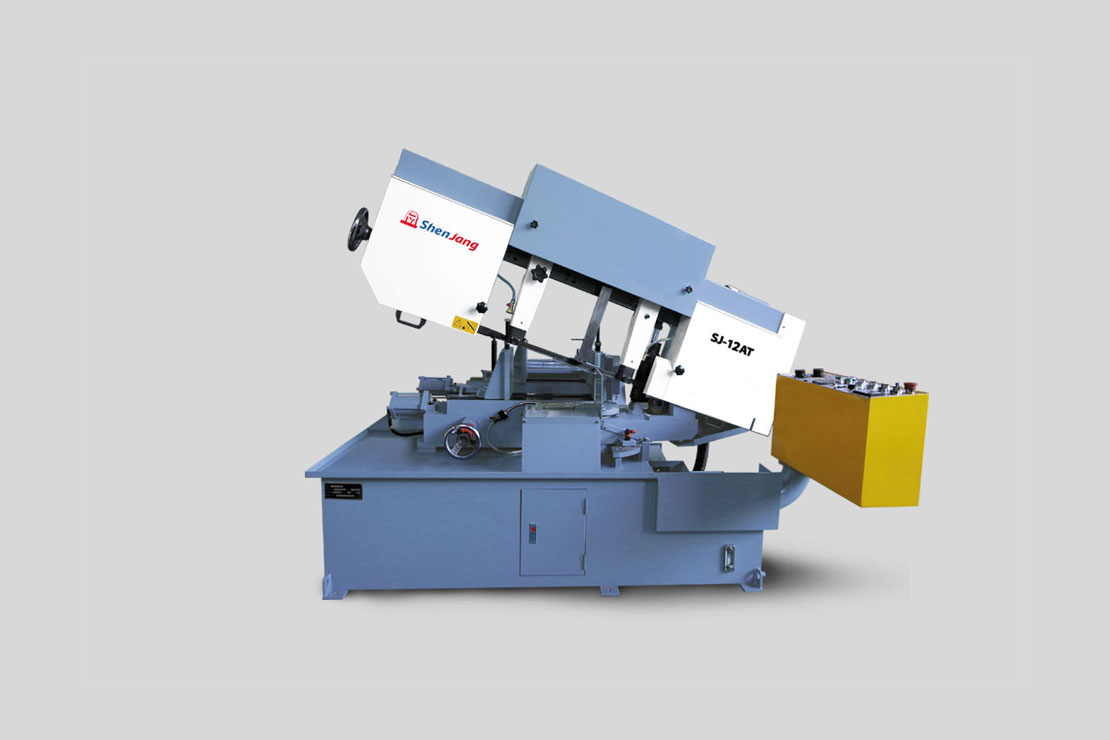

SJ-12AT.15AT(12".15")
SJ-12AT.15AT(12".15")
Automatic Bandsaw / Hydraulic Vice Feed / Angle Cutting
Auto-cutting, auto feeding, auto lifting frame and auto-clamping double vice. Swiveling saw frame manually
1.Heavy duty automatic machine
2.Hydraulic vice feed for continuous automatic cutting
3.Swivel head for easy 45 degrees angle cutting without moving material
4.Auto-cutting, auto feeding, auto lifting frame and auto-clamping double vice
5.Automatic blade breakage power off system
6.Out of stock sensor
7.Counting device
8.Flushing hose
9.Length indexing digital readout
10.Work light fitted standard
11.Efficient coolant system with built-in tank and pump
12.Instant blade tension
13.Large tungsten carbide and roller blade guide
14.Adjustable rod for the same cutting length
15.Rugged fabricated steel construction, powerful drive and positive vice
| Model | SJ-12AT |
 12" (300mm) |
|
| Capacity at 90 |  10" (260mm) |
 8"x 16" (200x400mm) |
|
| Capacity at 45 | 10" (260mm) |
| 10" (260mm) |
|
| Blade size |
1"x150 3/8" (27mmx0.9mmx3820mm) |
| Vise control | Hydraulic |
| Speed range | 50~297 FPM (15~90 MPM) |
| Motor hydraulic | 1HP(0.75KW) |
| Motor blade | 3HP(2.25KW) |
| Hydraulic tank | 45L |
| capacity | |
| Hydraulic tank output | 28Kg / cm2 |
| Coolant capacity | 50L |
| Shuttle stroke | one stroke 500mm(0~4500mm) |
| (0"~177") (0~9 Times) | |
| Packing size | 93" x 89" x 68" (234cmx224cmx171cm) |
| Net weight | 1250Kgs (2750ibs) |
| Gross weight | 1470Kgs (3234ibs) |
| Model | SJ-15AT |
| 15" (380mm) |
|
| Capacity at 90 | 13" (330mm) |
| 13"x 19 3/4" (330x500mm) |
|
| Capacity at 45 | 13 3/4" (350mm) |
| 13" (330mm) |
|
| Blade size |
1 1/4"x167" (34mmx1.1mmx4240mm) |
| Vise control | Hydraulic |
| Speed range | 50~297 FPM (15~90 MPM) |
| Motor hydraulic | 1HP(0.75KW) |
| Motor blade | 3HP(2.25KW) |
| Hydraulic tank | 45L |
| capacity | |
| Hydraulic tank output | 28Kg / cm2 |
| Coolant capacity | 50L |
| Shuttle stroke | one stroke 500mm(0~4500mm) |
| (0"~177") (0~9 Times) | |
| Packing size | 95 1/2" x 89 3/4" x 65 3/4" (243cmx228cmx167cm) |
| Net weight | 1350Kgs (2970ibs) |
| Gross weight | 1590Kgs (3498ibs) |
