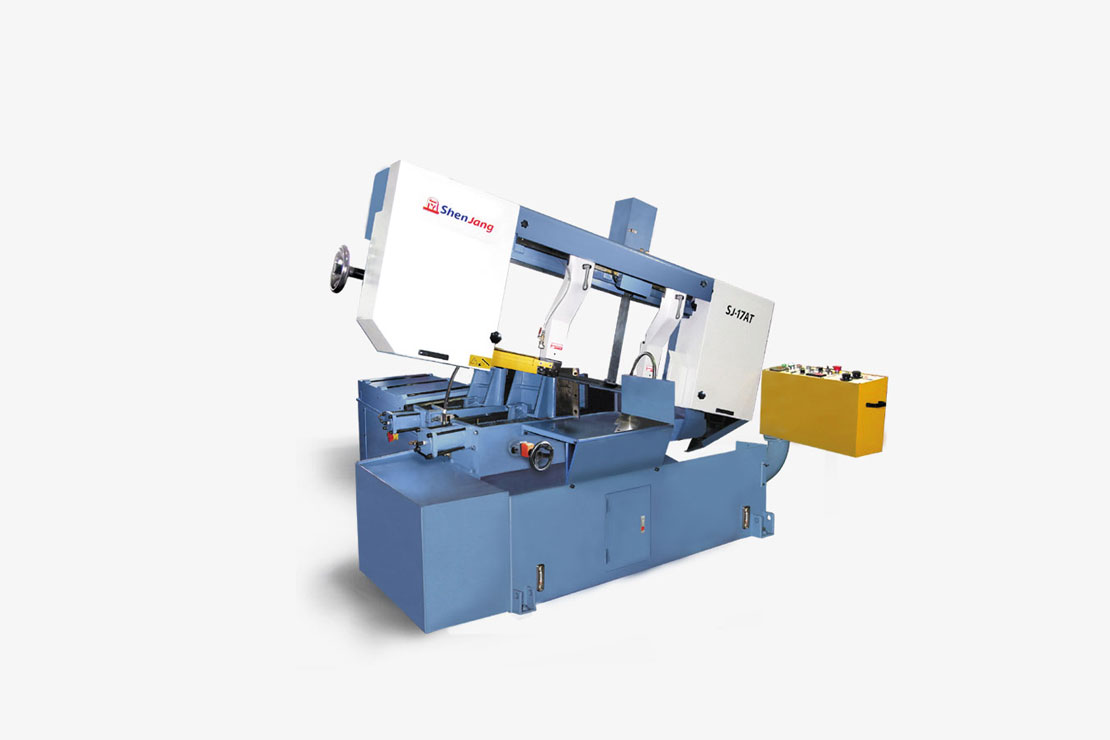

SJ-17AT(17")

SJ-17AT(17")

Automatic Bandsaw / Hydraulic Vice Feed / Hydraulic down-feed / Angle Cutting

Provide complete metal cutting functions, auto-cutting, auto feeding, auto lifting frame and auto-clamping double vice

1.Heavy duty automatic machine

2.Hydraulic vice feed for continuous automatic cutting

3.Swivel head for easy 45 degrees angle cutting without moving material

4.Auto-cutting, auto feeding, auto lifting frame and auto-clamping double vice

5.Hydraulic down feed

6.Frequency Inverter

7.Hydraulic chip conveyor

8.Automatic blade breakage power off system

9.Out of stock sensor

10.Counting device

11.Flushing hose

12.Length indexing digital readout

13.Work light fitted standard

14.Efficient coolant system with built-in tank and pump

15.Instant blade tension

16.Large tungsten carbide and roller blade guide

14.Adjustable rod for the same cutting length

15.Rugged fabricated steel construction, powerful drive and positive vice

Model  SJ-17AT
   17" (430mm)
Capacity at 90  15 3/4" (400mm)
   13 3/4"x 19 3/4" (350x500mm)
Capacity at 45  14" (360mm)
 13" (330mm)
 9"x 14" (230x360mm)
Blade size   1 1/4"x180" (34mmx1.1mmx4570mm)
Vice control  Hydraulic
Speed range   50~297 FPM (15~90 MPM)
Motor hydraulic  1HP(0.75KW)
 Motor blade  7.5HP(5.5KW)
Hydraulic tank  60L
capacity
Coolant capacity  56L
Shuttle stroke  one stroke 500mm(0~4500mm)
 (0"~177") (0~9 Times)
Table height  720mm
Bundle cutting(option)  W.180mm-340mm  H.40mm-200mm
Packing size  102 3/4" x 89 3/4" x 74" (261cmx228cmx188cm)
Net weight  1750Kgs (3850ibs)
Gross weight  2000Kgs (4400ibs)
