SJ-10AA.12AA.15AA( 10".12".15")
SJ-10AA.12AA.15AA(10"-15")

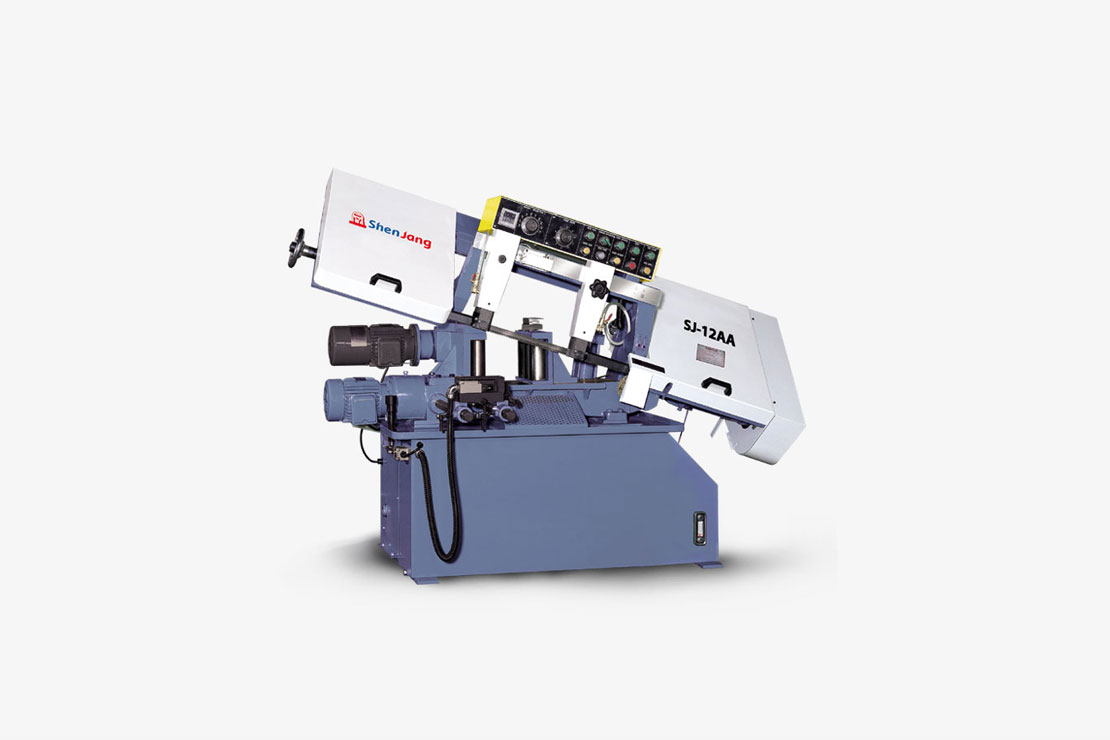

Automatic Bandsaw / Roller Feeding / Electro-Clamping
Provide complete metal cutting functions, including hydraulic downfeed, auto lifting frame, auto feeding and high selection with continuous cutting.
1.Heavy duty automatic machine
2.Roller type bar feed for continuous automatic cutting
3.Designed for accurate 90 degrees cutting
4.Automatic blade breakage power off system
5.Out of stock sensor
6.Counting device
7.Work light fitted standard
8.Instant blade tension
9.Large tungsten carbide blade guide
10.Adjustable rod for the same cutting length
| Model | SJ-10AA |
 10" (260mm) |
|
| Capacity at 90 |  9" (230mm) |
 6 3/4"x 14" (170x360mm) |
|
| Blade size | 1"x150 3/8" (27mmx0.9mmx3820mm) |
| Motor | 2HP(1.5KW) |
| Speed range | 75,130,180,220 FPM (23,40,55,67 MPM) |
| Packing size | 82" x 37" x 52" (209cmx95 1/2cmx132cm) |
| Net weight | 700Kgs (1540ibs) |
| Gross weight | 800Kgs (1760ibs) |
| Model | SJ-12AA |
| 12" (300mm) |
|
| Capacity at 90 | 10" (260mm) |
| 8"x 13" (200x330mm) |
|
| Blade size | 1"x150 3/8" (27mmx0.9mmx3820mm) |
| Motor | 3HP(2.25KW) |
| Speed range | 45,75,90,120,150,240 FPM (14,23,27,36,46,73 MPM) |
| Packing size | 82" x 37" x 52" (209cmx95 1/2cmx132cm) |
| Net weight | 900Kgs (1980ibs) |
| Gross weight | 1000Kgs (2200ibs) |
| Model | SJ-15AA |
| 15" (380mm) |
|
| Capacity at 90 | 11" (280mm) |
| 9"x 16" (230x410mm) |
|
| Blade size | 1"x168" (27mmx0.9mmx4265mm) |
| Motor | 3HP(2.25KW) |
| Speed range | 47,80,95,127,158,250 FPM (14,24,29,38,48,76 MPM) |
| Packing size | 90" x 37" x 58" (228cmx95 1/2cmx148 1/2cm) |
| Net weight | 1100Kgs (2420ibs) |
| Gross weight | 1200Kgs (2640ibs) |
