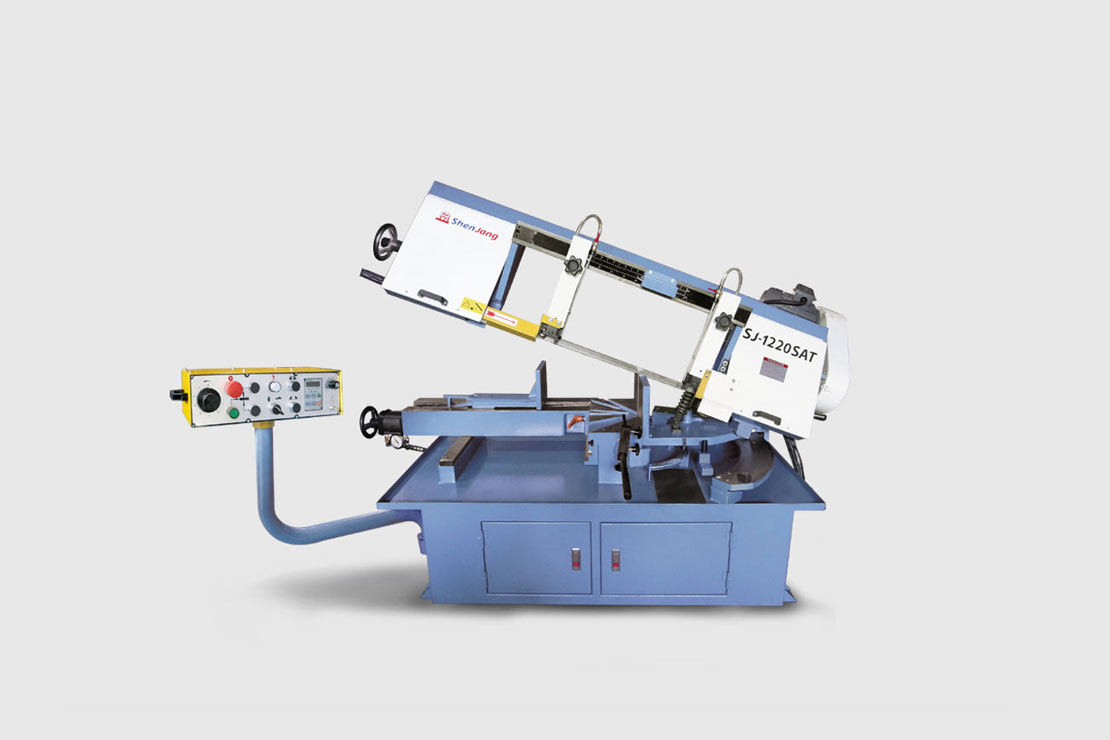

SJ-1220SAT(12")
SJ-1220SAT(12")
Semi-automatic Bandsaw / Angle Cutting / Bi-Direction Miter-cutting
Designed for 45/60 degrees cutting and precision double miter cut right and left. Auto lifting frame and swiveling saw frame manually.
*Products shown may include optional accessories.
1.Semi-automatic machine
2.Swivel head for easy angle cutting without moving material
3.Precision double miter cut to 45 and 60 degrees right and left
4.Auto lifting frame
5.Large white iron mitre scale - easy to read
6.Efficient coolant system with built-in tank and pump
7.High efficient, low energy motor
8.Speed change selection
9.Instant blade tension
10.Large tungsten carbide and roller blade guide
11.Adjustable rod for the same cutting length
12.Low voltage control with overload protecting
| Model | SJ-1220SAT |
 12" (305mm) |
|
| Capacity at 90 |  12" (305mm) |
 12"x 20" (305x500mm) |
|
| Capacity at 45 | 12" (305mm) |
| 12" (305mm) |
|
| Capacity at 60 | 8" (200mm) |
| 7 1/4" (185mm) |
|
| 6 1/4"x 8" (160x200mm) |
|
| Blade size | 1 "x150 3/8" (27mmx0.9mmx3820mm) |
| Motor | 2HP(1.5KW) |
| Speed range | 50,125, 200, 275 FPM (15,38,61,84 MPM) |
| Packing size | 88" x 40" x 44" (224cmx101 1/2cmx113cm) |
| Net weight | 570Kgs (1254ibs) |
| Gross weight | 620Kgs (1364ibs) |
