SJ-12SAT.15SAT( 12
SJ-12SAT.15SAT(12".15")

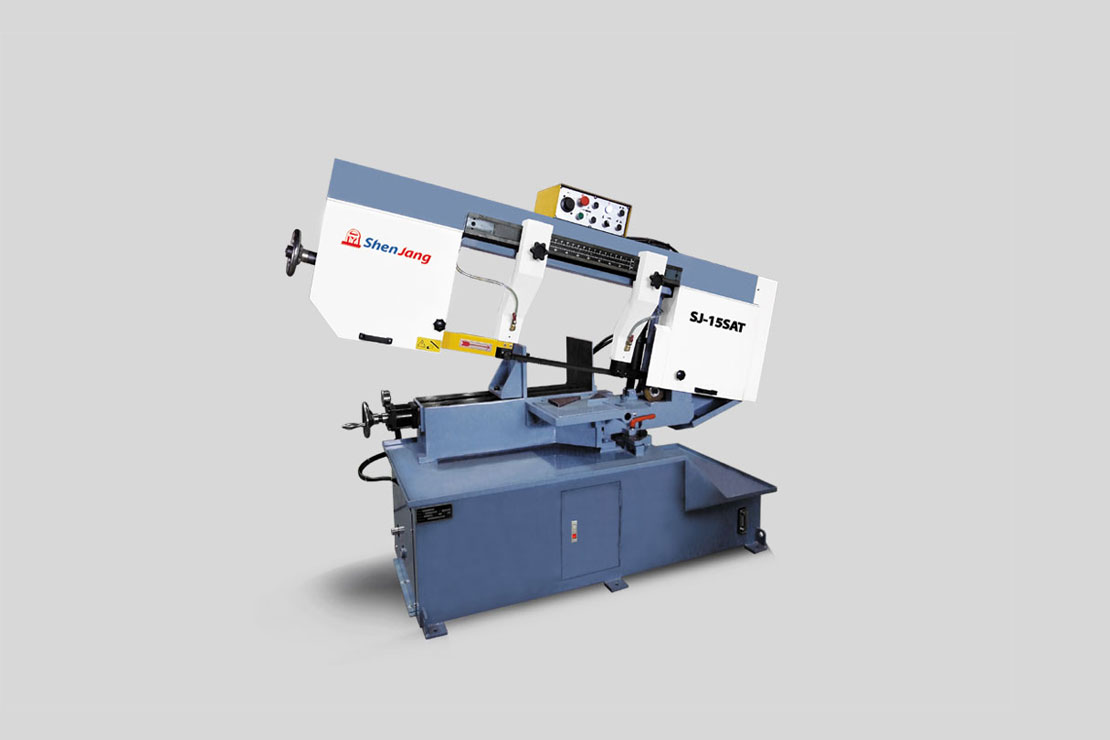

Semi-automatic Bandsaw / Angle Cutting
Swivel head for easy 45 degrees angle cutting. Swiveling saw frame manually and auto lifting frame.
*Products shown may include optional accessories.
1.Heavy duty automatic machine
2.Swivel head for easy angle cutting without moving material
3.Auto lifting frame
4.Hydraulic-clamping(SJ-12SAT+HV, SJ-15SAT+HV)
5.Instant blade tension
6.Efficient coolant system with built-in tank and pump
7.High efficient, low energy motor
8.Low voltage control with overload protecting
9.Centralized control panel
10.Large tungsten carbide and roller blade guide
11.Adjustable rod for the same cutting length
12.Rugged fabricated steel construction, powerful drive and positive vic
| Model | SJ-12SAT |
 12" (300mm) |
|
| Capacity at 90 |  9" (230mm) |
 9"x 13" (230x330mm) |
|
| Capacity at 45 | 9 1/2" (240mm) |
| 7 1/2" (190mm) |
|
| 7 1/2"x 9 1/2" (190x240mm) |
|
| Blade size | 1"x150 3/8" (27mmx0.9mmx3820mm) |
| Motor | 3HP(2.25KW) |
| Speed range | 42,70,85,110,135,210 FPM (13,21,26,34,41,64 MPM) |
| Packing size | 86" x 31" x 61" (218cmx79cmx156cm) |
| Net weight | 850Kgs (1870ibs) |
| Gross weight | 950Kgs (2090ibs) |
| Model | SJ-15SAT |
| 15" (380mm) |
|
| Capacity at 90 | 11" (280mm) |
| 11"x 20 1/2" (280x520mm) |
|
| Capacity at 45 | 13 3/4" (350mm) |
| 11" (280mm) |
|
| 11"x 13 3/4" (280x350mm) |
|
| Blade size | 1"x162" (27mmx0.9mmx4115mm) |
| Motor | 3HP(2.25KW) |
| Speed range | 42,70,85,110,135,210 FPM (13,21,26,34,41,64 MPM) |
| Packing size | 90" x 36" x 62" (228cmx91cmx164cm) |
| Net weight | 950Kgs (2090ibs) |
| Gross weight | 1050Kgs (2310ibs) |
