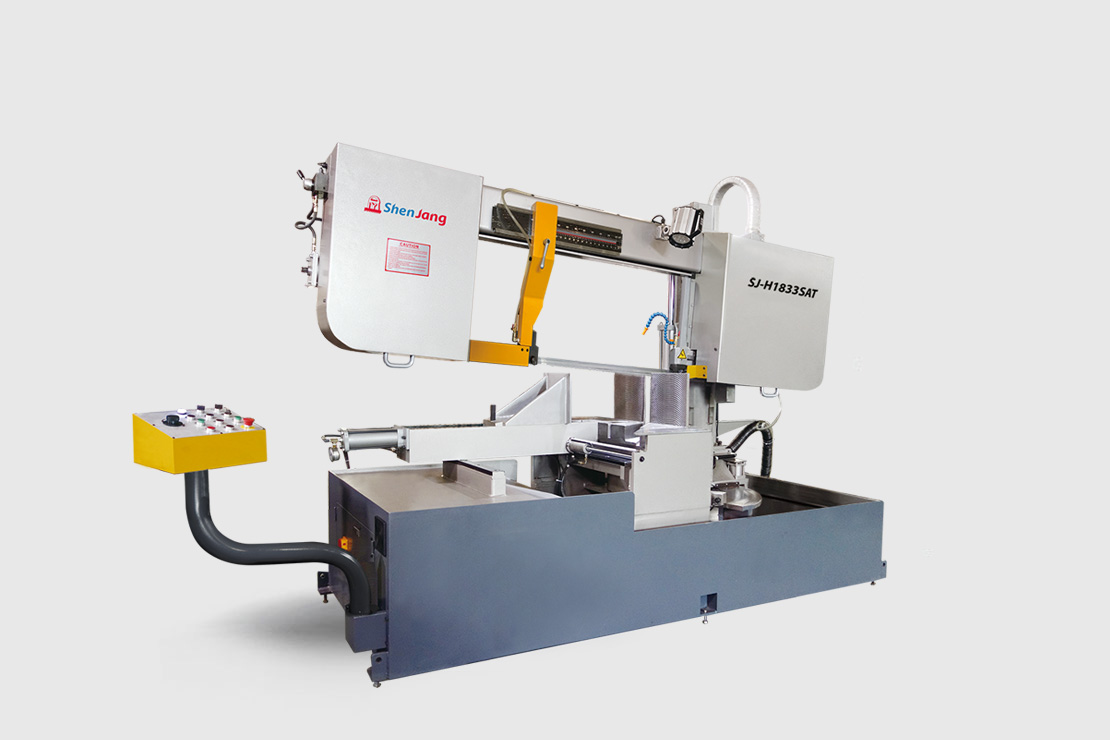

SJ-H1833SAT(18")
SJ-H1833SAT(18")
Semi-automatic Bandsaw / Single Column / Bi-Direction Miter-cutting
Designed for 45/60 degrees cutting and precision double miter cut right and left.
*Products shown may include optional accessories.
1.Semi-automatic machine
2.Swivel head for easy angle cutting without moving material
3.Precision double miter cut to 45 and 60 degrees right and left
4.Auto lifting frame
5.Single column horizontal bandsaw
6.Accurate cutting angle setting by motor
7.Table movement by hydraulic
8.Multi-strokes hydraulic vice
9.Manual blade tension w/ tension gauge
10.Saw bow height auto set by descending slide bar
11.Variable blade speed by frequency inverter
12.Variable vise pressure
13.Digital Readout (Cutting Angle and Blade Speed)
14.Power Driven Chip Brush
15.Manual Lubrication System
16.Hydraulic blade tension (Opt.)
| Model | SJ-H1833SAT |
 18" (460mm) |
|
| Capacity at 90 |  18" (460mm) |
 18"x 31 1/2" (460x800mm) |
|
| Capacity at 45 | 18" (460mm) |
| 18" (460mm) |
|
| Capacity at 60 | 15" (380mm) |
| 15" (380mm) |
|
| Blade size | 1 3/5"x0.051"x240" (41mmx1.3mmx6100mm) |
| Motor | 7.5HP(5.63KW) |
| Speed range | 50~297 FPM (15~90 MPM) |
| Packing size | 136" x 45" x 91" (345cmx115cmx230cm) |
| Net weight | 2300Kgs (5060ibs) |
| Gross weight | 2500Kgs (5500ibs) |
