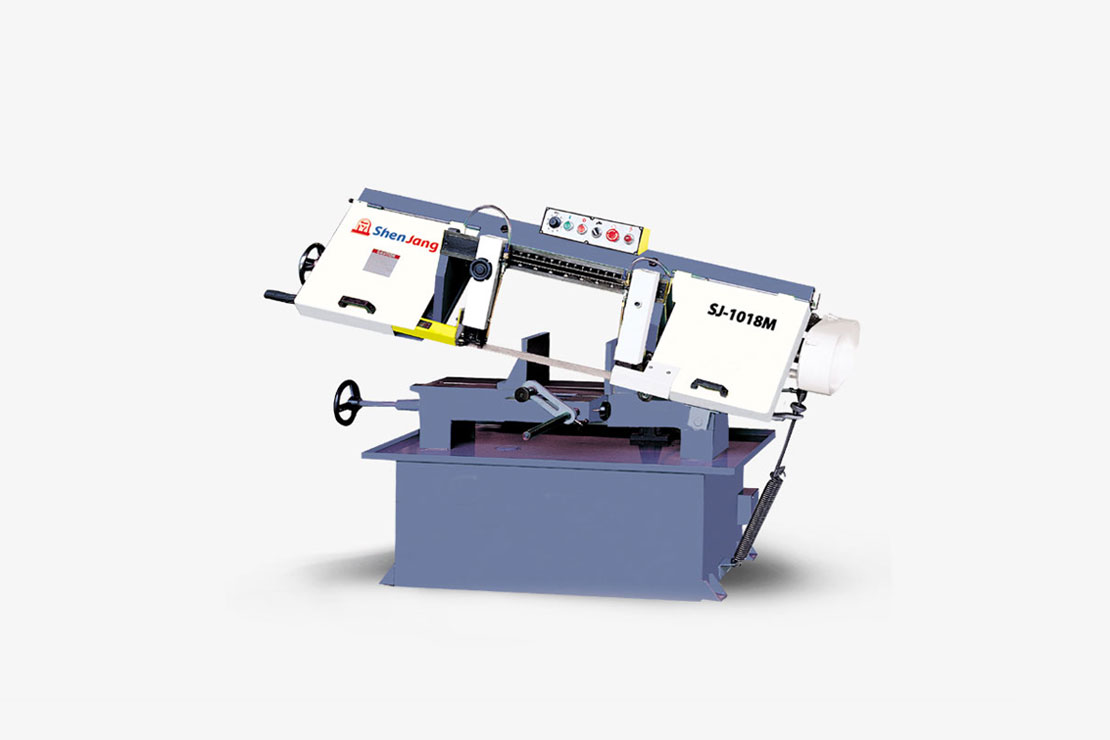

SJ-1018M( 10")
Manual Bandsaw
Designed for accurate 90 degrees cutting and rising saw frame manually.
1.Manual machine
2.Designed for accurate 90 degrees cutting
3.Centralized control panel
4.Speed change selection
5.Instant blade tension
6.Large tungsten carbide and roller blade guide
7.Adjustable rod for the same cutting length
8.Efficient coolant system with built-in tank and pump
9.High efficient, low energy motor.
10.Low voltage control with overload protecting
Model | SJ-1018M |
10" (260mm) | |
Capacity at 90 | 10" (260mm) |
5"x 18" (125x460mm) | |
Capacity at 45 vise swivel |
9" (230mm) |
8 1/2" (220mm) | |
8 1/2"x 9" (220x230mm) | |
Blade size | 1"x132 1/2" (27mmx0.9mmx3365mm) |
Motor | 2HP(1.5KW) |
Speed range | 50,125,200,275 FPM (15,38,61,84 MPM) |
Packing size | 74" x 30" x 44" (188cmx75cmx112cm) |
Net weight | 320Kgs (704ibs) |
Gross weight | 370Kgs (814ibs) |
